Clearcom Clearcom DX340 Digital Wireless Intercom System อินเตอร์ไร้สาย ระบบ 2.4 GHz DX340

Clearcom DX340 Digital Wireless Intercom System
อินเตอร์ไร้สาย ระบบ 2.4 GHz ,Wideband 7Khz เสียงคมชัด รองรับได้สูงสุด 15 Beltpack
ครอบคลุมระยะทาง 300 เมตร

•
  Features: คุณสมบัติ

  • Two-Channel 2.4GHz Portable Base Station
  • Up to 4 full-duplex or 12 half-duplex beltpack and/or all-in-one headset users per base station
  • Link two bases together to support a maximum of 30 users
  • Single or dual-channel operation
  • 7kHz wideband audios
  • Lost packet concealment
  • Better RF filtering than DX300ES
  • Secure 64-bit encryption
  • Dedicated channel relays
  • 10-pin terminal strip connector for easy connection to 4-wire intercom systems
  • Triple diversity (space, time and frequency) operation for extreme multi-path environments
  • No frequency coordination or licensing for operation
  • Power via 100-240 VAC, 12-14 VDC, 1.5V AA batteries or an optional rechargeable BAT850 battery


• Specifications:

  • System
  • Frequency Range: All (2400-2483.5MHz), Low (2401.92 to 2439.936MHz) or High Band (2443.392 to 2481.408MHz)
  • Frequency Response: 200Hz to 7kHz
  • Security: 64-Bit Encryption
  • Temperature Range: -4 to 131°F (-20 to 55°C)typical
  • Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS)
  • Transmit Power: 100mw Burst
  • Modulation Type: Gaussian Filtered FSK, TDMA
  • Frequency Stability: 13ppm
  • Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature
  • RF Sensitivity: <-90dBm w 10-3 BER
  • System Distortion: <2%
  • Dynamic Range: -90dBm to –20dBm
  • FCC Acceptance: Part 15

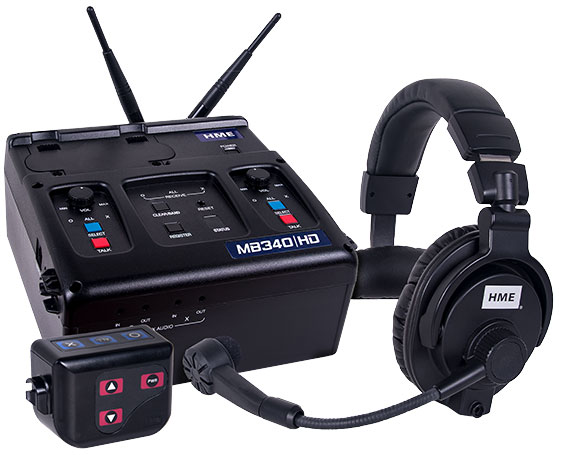

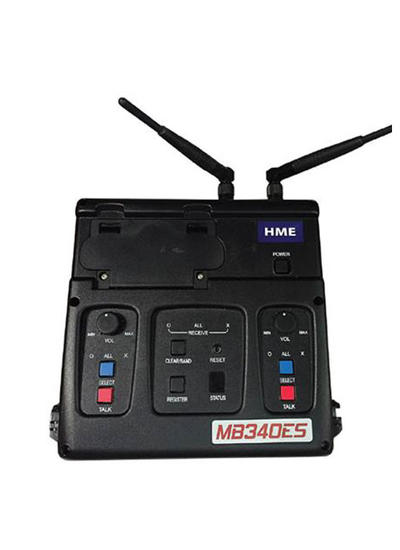

    Base Station
  • Antenna Type: External, Dual Diversity +-Wave Dipole, R-TNC Connector (x2)
  • AUX I/O: 600 Ω Balanced, with Level Adjustment
  • Headset Connector (x2): Mini-DIN
  • Headset Output: 200mW into 32W
  • Relay: 8-Pin Phoenix – NC,COM,NO,GND (x2) 2A @ 30V DC

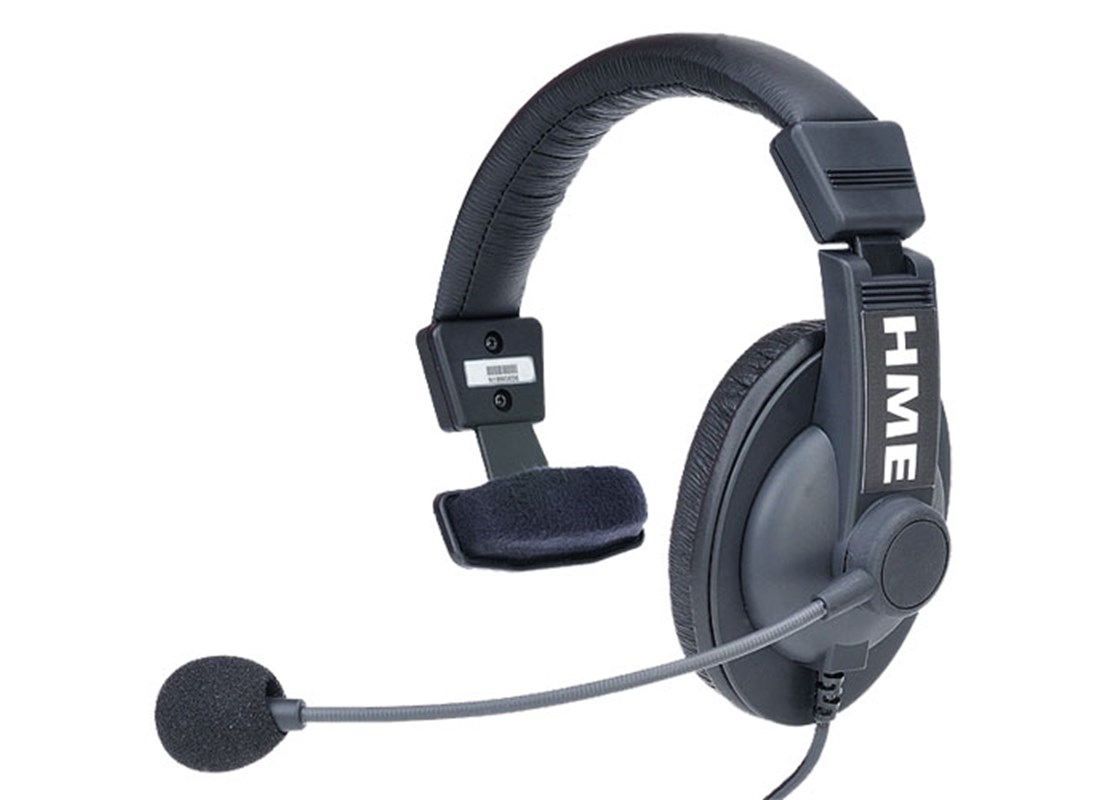

    All-in-One Headset
  • Antenna Type: Internal, Dual Diversity
  • Transmission Modes: Continuous (Latched) or Push-to-Talk (PTT)
  • Mic Input: Electret
  • Headset Output: 160mw into 32W
  • Controls (Default): Power-On/Off, Volume-Up/Down, IC-Talk, ISO-Relay
  • Indicators: Power/Transmit/Low Battery LED & Voice Prompts

    Power
  • 100–240V AC, 50-60Hz or 12-14V DC or Six 1.5V AA Batteries or BAT850 Rechargeable Battery (Optional)

    Dimensions
  • 8 x 8 x 3.5in (WxHxD) (203 x 203 x 90mm)
  • Weight: 2.75lb (1.25kg) with Battery

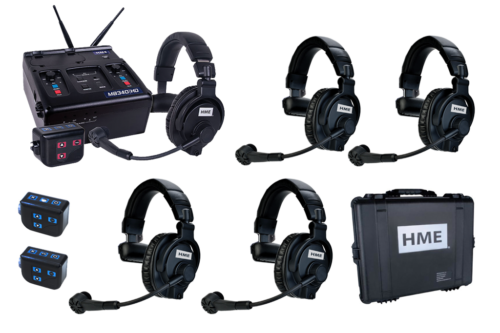

    ราคาเริ่มต้น 4 Beltpack SET ราคาชุดละ 250,000 บาท สามารถอัพเกรด Beltpack ได้สูงสุดถึง 15 Beltpacks

    ติดต่อสอบถามสินค้า โทร 091-886-3886
    Line ID:@mcbs
    เราคือตัวแทนนำเข้าและจำหน่ายสินค้าแบรนด์ Clearcom ในประเทศไทย
